Horizontal enamelling machine for aluminium and copper round wire – single lines, electrical power + natural gas
Sicme Italia Impianti, specializing in the production of enamelling plants for copper and aluminium wire, manufactures and sells horizontal enamelling machines type SuperCompact : single lines for copper and aluminium round wire which can run with electricity and/or natural gas (consumption cost effective).
Structures available: 2 ovens/2 lines
Available models:
| Machine type | IEC [mm] – Cu – | IEC [mm] – Al – | ||
| SCg 160 | 0,16 | 0,315 | 0,25 | 0,56 |
| SCg 200 | 0,20 | 0,50 | 0,355 | 0,80 |
| SCg 300 | 0,355 | 0,80 | 0,50 | 1,25 |
| SCg 500 | 0,50 | 1,25 | 0,71 | 1,80 |
| American wire gauge (AWG) | |
| 34 | 23 |
| 32 | 20 |
| 27 | 17 |
| 24 | 13 |
The company internally produces all the plants parts, and tests the finished machines.
Only after the testing the machines are delivered.

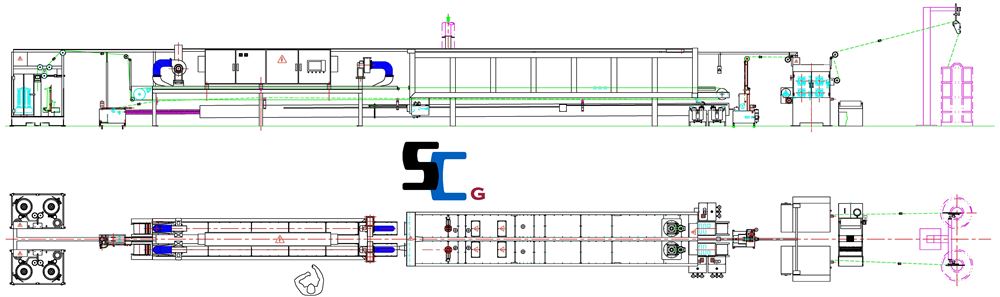

To see the layout of the machine, click here.
