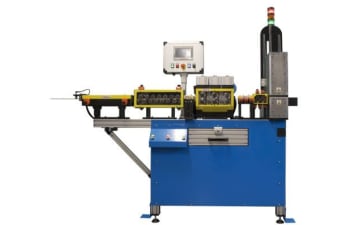

Cutting machine for wire

Equipped with a PLC system installed in a metal cabinet this machines operates fully automatically and is fed by a coiled wire taken off from a decoiler.
Thanks to an independent roller device the wire is aligned and fed into the cutting unit and cut into spokes of required length, which can be easily changed by controlling a one touch screen of which the machines is provided.

Machine technical features:

Feed range: Unlimited.
Wire dimensions: 4 mm ( Standard ).
Power ( welder ): 1 x 17 KVA.
Electrical requirements: TN-S 400/230 VAC 50/50 Hz 10 A.
Air installation: R 1/2" 7 Bar.
Overall dimensions: 1200-800-1730 mm (LxWxH).
Total net weight of the machine: 250 Kg.
Outputs ( cuts / minutes ): 55 mm ~ 300/minute, 117 mm ~ 200/minute.
