Standard electro-welded stainless or galvanized steel mesh

Nuova Defim Orsogril specializes in the production of steel mesh and gratings. The company, headquartered in Italy, supplies a wide range of standard electro-welded galvanized or stainless steel mesh.

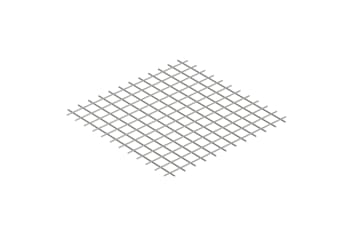

The “Defim Std” model (img. on the right) stands out among the corporate wide product range. A series of mesh panels in self-color, hot-dip galvanized, and stainless steel wires from ø3 mm to ø6 mm, mesh aperture from 25 mm x 25 mm to 100 mm x 100 mm and panels from 1000 mm x 2000 mm to 1600 mm x 5000 mm.
The RT 60x11 "phalanx-proof" and TEC 15+105x15 "finger-proof" wire meshes ensure absolute safety in full compliance with national and international standards.

On the other hand, the ARMEDIL® series is specifically engineered to prevent concrete cracking phenomena.
From the most standard models such as ARMEDIL and ARMEDIL LIGHT to the most technical and professional ones: Nuova Defim solutions can satisfy virtually every need.

ARMEDIL®: classic anti-crack wire mesh for those looking for a high grade product. Nominal wire diameter: 1.8 mm.
ARMEDIL® LIGHT: same quality as ARMEDIL®, different diameter (1.5 mm). Best suited for large surfaces.

Other options are also available with 100 mm x 100 mm aperture with ø3, 4, and 6 mm wire in 2000 x 2000 mm and 1600 x 2000 mm panels. Each panel boasts first-quality galvanizing according to UNI EN 10244-2.
