Reconditioned cable making machinery - Special offer from Queins and Stolberger

QUEINS Machines GmbH and Stolberger KMB-Maschinenfabrik GmbH are two sister companies located in Monschau - Germany - specializing in the production of heavy duty machines for cable and rope manufacturing.

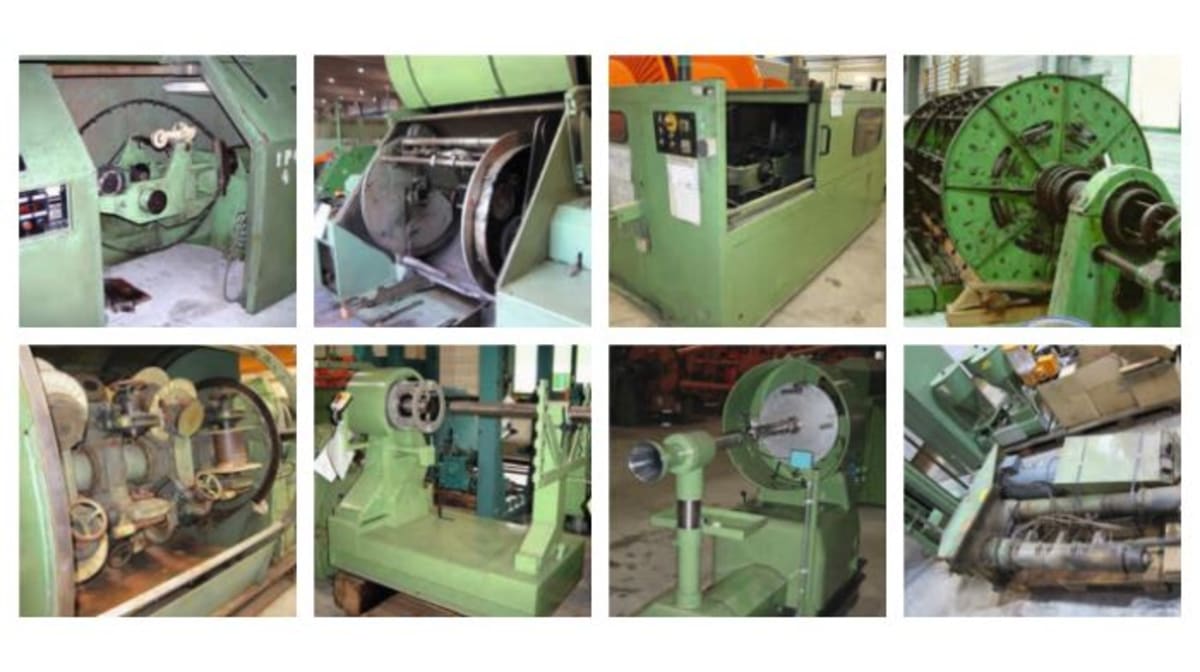

Besides the new equipment, QUEINS and Stolberger also offer a wide range of reconditioned cable making machinery.

Hereunder the latest entries:

Ref. 13-7453 (4 units available)
CABALLE (used, condition “as is”)
Double twist pairing machine PDT 560
2 units driven pay-off for 560 mm bobbins
for 2 insulated copper conductors 0,32 – 0,9 mm, dia. over insulation 2 mm, pair dia. 4 mm
pitch range 10 – 200 mm
max. 2000 min-1 = 4000 twists/min
take-up bobbin size 560 mm ø, max. weight 300 kg
Electrical equipment
Net price (ExWorks Monschau): € 11.000,00
Special reduced price: € 9.500,00         Ref. 13-7540
GODDERIGE (used, condition “as is”)
Double twist bunching machine M900DT
The machine is laid out to take up reels: 800 and 900 mm
6 Pay-offs for max. bobbin size 630 mm
Speed of rotation: 1300 rpm / 2600 twist/min
Range of lay-length:  14 – 145 mm
Production program:
- bunching: max. 16 mm², assembling: 7 x 1,04 mm
Electrical equipment
Net price (ExWorks Monschau): € 16.000,00
Special reduced price: € 12.500,00          Ref. 13-7721 (5 units available)
KNEFEL (used, condition “as is”)
Double twist bunching machine W500-1C
for copper conductors 0,5 – 6 mm²
max. 2000 min-1 = 4000 twists/min
take-up bobbin size 500 mm ø
Electrical equipment
Net price (ExWorks Monschau): € 6.000,00
Special reduced price: € 4000,00          Ref. 14-7137
MALI (used, condition “as is”)
Stranding/Screening cage 48/40 S
Suitable for 48 bobbins (8 x 6), bobbin flange dia. max. 400 mm, bore 127 mm and width 235 mm. Previous owner was using aluminium bobbin flange dia. of 315 mm, other dimensions as mentioned.
Manually operated pintles, adjustable bobbin brake.
Max. rotational speed 136 rpm
Without Electrics
Net price (ExWorks Monschau): € 45.000,00
Special reduced price: € 29.500,00         Ref. 14-7981
STOLBERGER (used, condition “as is”)
Rigid stranding machine KJA 40/50 6+12
1) 6-bobbin cage with die stand for 405 mm bobbins
2) Concentric taping head
3) 12-bobbin cage with die stand for 405 mm bobbins
4) 2 units Concentric taping heads
5) Double disc capstan, disc dia. 800 mm
6) Stationary take-up stand for drum size 1200 mm, 5 tons
7) Electrical equipment
Net price (ExWorks Monschau): € 88.000,00
Special reduced price: € 59.500,00         Ref. 17-6661-2
POURTIER (used, condition “as is”)
Binding head G200
The binding head laid out to take one spool/ cops as follows:
Outer dia.: max. 200 mm
Bore. 90 mm
Width: max. 180 mm
Speed of rotation: 1000 min-1
Passage through the head:   approx. 65 mm
Without motor switchboard
Net price (ExWorks Monschau):   € 7.500,00
Special reduced price: € 6.000,00         Ref. 17-6661-1
POURTIER (used, condition “as is”)
Taping head G300
The taping head is laid out to take one pad as follows:
Outer dia.: max. 300 mm
Inner pad bore approx. 80 mm
Width: max. 50 mm
Speed of rotation: 1000 min-1
Passage through the head: 40 mm
Without motor switchboard
Net price (ExWorks Monschau): € 10.000,00
Special reduced price: € 7.500,00          Ref. 30-7362
KRUPP (used, condition “as is”)
Vertical Extruder P45V
Screw diameter: 45 mm
Screw length: 18,5 x D
Number of rotations of screw: max. 92 rpm
Pressure: max. 600 bar
With motor
Net price (ExWorks Monschau): € 7.500,00
Special reduced price: € 6.000,00          Ref. 30-7566
BERSTORFF (used, condition “as is”)
Extruder for thermoplastics (rubber strips) E01Z63/81
Screw diameter: 60 mm
Screw length: 16 x D
With motor and switchboard
Net price (ExWorks Monschau): € 12.000,00
Special reduced price: € 9.500,00          Ref. 31-7533
DAVIS STANDARD
Rubber Extruder 350S
Screw diameter: 90 mm
Screw length: 16 x D
Heating zones: 3
Without electrics
Net price (ExWorks Monschau): € 14.000,00
Special reduced price: € 11.500,00          Ref. 31-7585
GENERAL ENGINEERING (used, condition “as is”)
Extruder for PVC/PE
Screw diameter: 120 mm
Screw length: 20 x D
Without motor and electrics
Net price (ExWorks Monschau): € 14.000,00
Special reduced price: € 11.500,00         Ref. 32-6631
GENERAL ENGINEERING (used, condition “as is”)
Extruder 6”XT
Extruder for PVC/PE
Screw diameter: 152 mm (6”)
Screw length: 20 x D
Without motor and switchboard
Net price (ExWorks Monschau): € 15.000,00
Special reduced price: € 12.500,00         Ref. 39-7356
LEIMBACH (used, condition “as is”)
Automatic double spooler CD 06.04
Bobbin dimensions: 450 - 600 mm
Core diameter: 202 - 300 mm
Range of wire: cross section 0,5 – 6 mm²
Line speed laid out for V max. 535 m/min. (with 300 mm core)
Electrical equipment
Net price (ExWorks Monschau): € 15.000,00
Special reduced price: € 12.500,00          Ref. 45-7094
QUEINS (used, condition “as is”, reconditioned)
Double disc capstan QDD 2 x 800
Disc diameter: 800 mm
For max. product diameter of 12 mm
Multi speed gearbox
Without motor and electrics
Net price (ExWorks Monschau): € 25.000,00
Special reduced price: € 19.500,00          Ref. 47-7499
STOLBERGER
Length measuring device C 80
Measuring range: 9999,9 m
Accuracy: ± 0,4 %
Max. Kabeldurchmesser: 80 mm
Max. measuring speed: 200 m/min
Including digital counting
Net price (ExWorks Monschau): € 6.800,00
Special reduced price: € 4.900,00          Ref. 60-7616
BARCRO (used, condition “as is”)
6-Die Double block drawing machine
from max. 8 mm (inlet) to 1,8 mm finished diameter. Each block is driven by its own motor (power each 18,5 kW).
Diameter of double blocks 1 – 5: 600 mm
Diameter of block 6 (stripper): 550 mm
Drawing speed:max. 8 m/sec (steel and alloys),max.10 m/sec (copper wires)
Wire elongation: 28 – 31%
Material: steel-, copper-, bronze- wires.
Electrical equipment
Net price (ExWorks Monschau): € 41.000,00
Special reduced price: € 29.500,00          Ref. 60-7617 (2 units available)
MALMEDIE (used, condition “as is”)
Single drawing blocks GE 60
Block dia.: 525 mm
Pulling speed: 1,6 m/sec
Inlet ø: max. 15 mm
Finished ø: min. 1,4 mm (by change of drawing dies)
AC motor of approx. 26 kW
Net price (ExWorks Monschau): € 5.000,00
Special reduced price: € 3.500,00          Ref. 60-7618
MALMEDIE (used, condition “as is”)
Block drawing line MZT 5 for round/ flat copper wirs
Inlet dia. max. (round): 9,5 mm (0,37 in)
Range of finished wire: 2,00 mm (0,08 in) (round 3,14 mm² (0,0048 in2 (rectangular / flat wire)
Number of blocks/ dies: 5
Block dia.: 800 mm (31,5 in)
Elongation of wire: 26, 22, 20 and 15%
Drawing speed: max. 2 m/sec
Net price (ExWorks Monschau): € 24.000,00
Special reduced price: € 19.500,00         Ref. 61-7028
MRB (used, condition “as is”, cleaned, repainted)
9-Die rod drawing machine for aluminium wires, MR 9
Number of dies: 9
Inlet dia.: 9,5 mm
Finished dia.: 2,59 mm
Die elongation: between 35,62% and 32,91%
Speed: max. 20 m/sec
Without motor and electric equipment
Without spooler
Net price (ExWorks Monschau): € 32.000,00
Special reduced price: € 25.500,00                      Ref. 66-7621
MALMEDIE (used, condition “as is”)
Fine wire drawing machine MMN 4
Inlet dia. max.: 3 mm
Range of finished wire dia.: 0,40 mm
Number of dies: 21
Elongation of wire: 20%
Drawing speed: max. 20 m/sec
Single spooler: laid out for spools of max. flange diameter of 450 mm.
Net price (ExWorks Monschau): € 9.900,00
Special reduced price: € 7.500,00         Ref. 66-7622
HERBORN (used, condition “as is”)
Fine wire drawing machine TF II d
Inlet dia. max.: 3 mm
Range of finished wire dia.: 0,10 – 0,5mm
Number of dies: 11
Elongation of wire: 24%
Drawing speed: max. 25 m/sec
Single spooler: laid out for spools of max. flange diameter of 450 mm
Net price (ExWorks Monschau): € 9.900,00
Special reduced price: € 7.500,00         Ref. 66-7659
BETAMAT (used, condition “as is”)
Set of 6 die polishing machines for fine wire dies
Net price for set (ExWorks Monschau): € 3.900,00
Special reduced set price: € 2.500,00          Ref. 82-7447
NIEHOFF (used, condition “as is”)
Automatic double spooler SY 500 D.2.F.E./ dancer VM 300
Flange dia.: 500 mm and 560 mm (shaft type)
Winding speed: max. 35,5 m/sec.
Range of wire size: Ø 1,62 – 3,2 mm
Material: copper wire
Electrics
Net price (ExWorks Monschau): € 28.000,00
Special reduced price: € 24.500,00          Ref. 83-6963
HENRICH (used, condition “as is”)
Bundle packer for coni pack system 11 FBU 500C
Wire material: copper wires/strands
Wire dia.: 1,5 - 4,7 mm Ø, cable dia.:10,5 mm Ø
Max. flyer speed: 1526 rpm
Coni Pack bobbins: flange dia. 390 x height 400 x barrel dia. 167/237 mm x bore dia. 57 mm
Max. speed of line: 300/800 m/min
Diameter of capstan: 320 mm
Net price (ExWorks Monschau): € 13.900,00
Special reduced price: € 11.500,00          Ref. 83-7465
GODDERIDGE (used, condition “as is”)
Barrel coiler
The barrel coiler is suitable for bare and insulated wire.
Diameter of pulling and distribution disc: 420 mm
Barrel dimensions:
- outside diameter: 500 mm
- inner diameter: 350 mm
- total height: 700 mm
Net price (ExWorks Monschau): € 5.500,00
Special reduced price: € 3.900,00         Ref. 83-7697
HENRICH (used, condition “as is”)
Bundle packer 4B4000
Wire diameter standard range (copper): 1,35 – 4,5 mm
The machine is suitable for bobbins as follows:
Flange-ø: 1.250 mm
The machine is driven by a DC Motor.
Electric switchboard: included
Net price (ExWorks Monschau): € 21.000,00
Special reduced price: € 17.500,00               Contacts:
