The market demands large coiling solutions, Windak has you covered
Windak’s range of coilers is expanding to meet the current market demands of the wire, cable, and tubing industry. The new FlexCoiler Model FC8 is specifically designed to match a wide range of cable and coil sizes while keeping the setup time between different product and coil dimensions minimal.

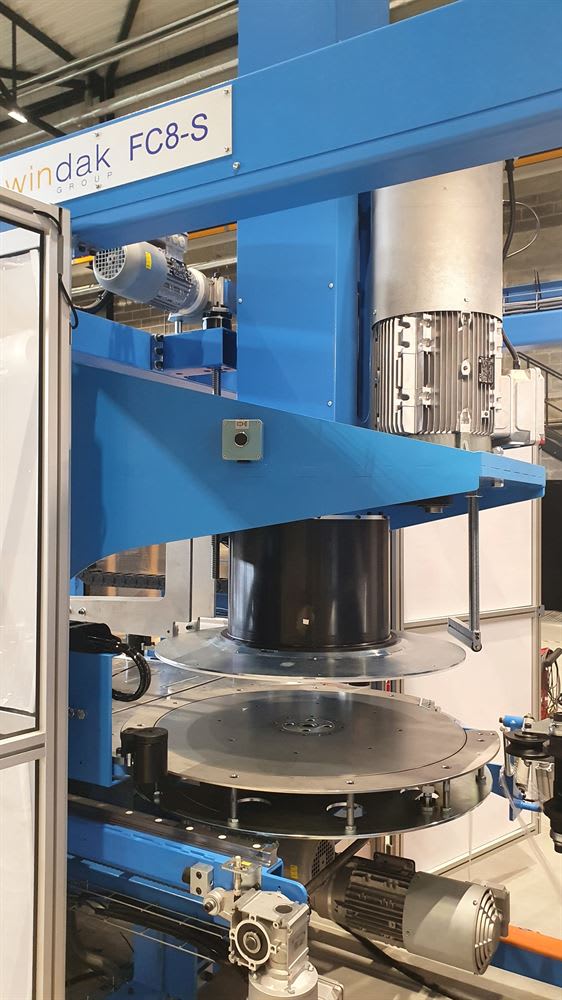

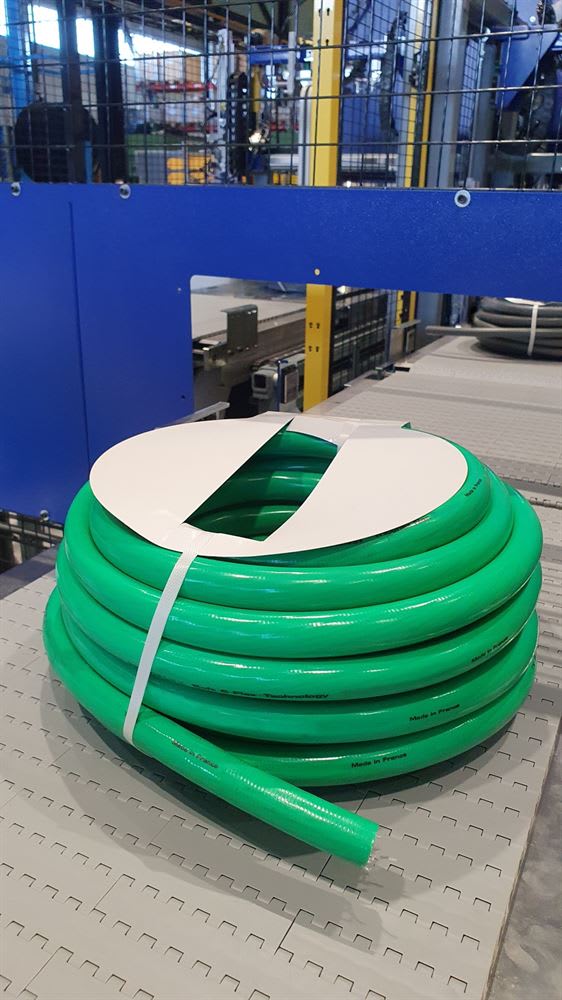

The FC8 coiler is a fully automatic single-head machine able to process a max. of 4 coils per minute with an inside diameter ranging from 200 mm to 400 mm (7.8'' - 15,7'') and an outside diameter from 300mm to 800mm (11.8“ - 31.5”). The coil height may vary from 70 mm to 300 mm (2.7'' - 11,8'') and the coil weight can extend up to 70 kg (150 lbs).
Most of the cable sizes can be processed without changing the laying/feeding tube. Specifically, it is possible to accommodate round cables with diameter ranging from 5 mm to 30 mm (0.2'' - 1.2''), and flat cables with width from 6 mm to 25 mm (0.24'' - 1''). This cutting-edge coiling machine reaches a maximum speed of 300 m/min (1000 ft/min), depending on the product and its application.
- Coil height and width adjustments are motor driven.
- Changing the inner core ID lamella takes only 10 minutes.
- The movements are checked by high-precision drives and motors to ensure full control of the coiling process and maximize the machine output.
- It is especially suitable for flexible products, which are usually more difficult to coil.
- It can also be equipped with a binder, a strapper, or with the Shrink Foil option.
- It can be equipped with Windak's patented stretch wrap solution of the coil in the coiling head.
To find out all the features of the new FC8 Automatic Coiler by Windak, please visit the company’s website at this link.
