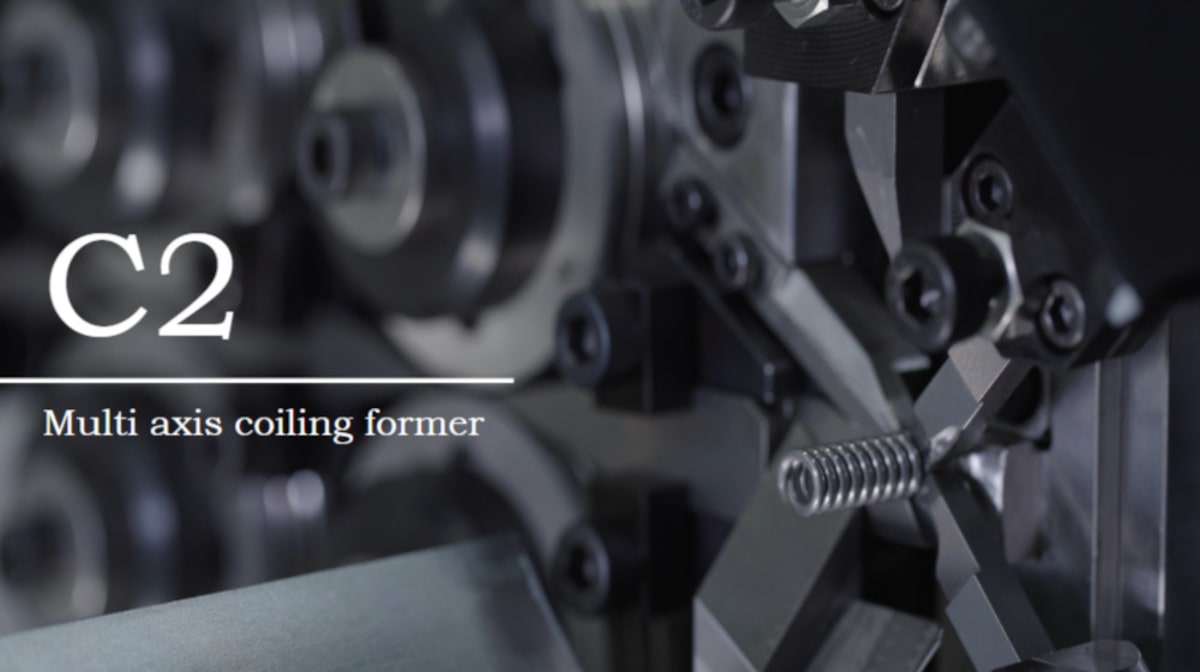

Introducing C2, Asahi Seiki's innovative multi-axis coiling forming machine

Asahi Seiki, the renowned Japan-based machine manufacturer, is thrilled to  unveil its latest engineering marvel, the C2 multi-axis coiling forming machine. This state-of-the-art machine has garnered significant attention since its debut at the recent MF TOKYO exhibition, captivating the interest of all attendees.

With versatile technical specifications, the C2 showcases its efficiency and precision. It can process wire diameters ranging from 0.6 to 2.6 mm, while maintaining a spring index (D/d) of 3 or more. Its maximum wire feeding speed of 130 m/min ensures efficient and swift production cycles.

One of the standout features of the C2 lies in its ability to accommodate 16 servo slide axes, providing unparalleled flexibility and control. Each movement, from coiling slide position to coiling pin rotation and initial tension adjustment, can be precisely controlled through an intuitive computer program. The same applies to the position of the mandrel. This level of automation significantly reduces setup time, enhancing reproducibility, maximizing productivity, and minimizing downtime.



The C2 seamlessly transitions between cutting methods with a simple touch. Operators can effortlessly switch between straight cut and rotary cut, adapting to the unique requirements of each production phase. This feature streamlines manufacturing processes, enhancing efficiency and versatility.

Below are a couple of slides to illustrate the position and nature of all the components that make up this sophisticated machinery:




With the introduction of the C2 multi-axis coiling forming machine, Asahi Seiki cements its position as a pioneer in precision machinery. The C2's exceptional capabilities, including its extensive axis configuration, rapid setup time, and seamless cutting options, empower manufacturers to achieve higher productivity and exceptional product quality. Asahi Seiki continues to push the boundaries of innovation, providing cutting-edge solutions that redefine the standards of spring coiling and forming machinery.

Now that you have had the chance to delve into the technical features of the C2 multi-axis coiling forming machine, watch it in action!


Don’t hesitate to contact the company through the provided references to know more about Asahi Seiki and its latest offerings.
