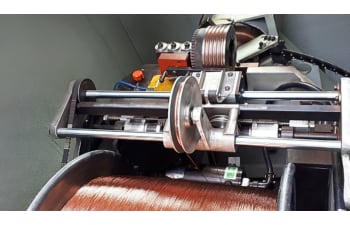

Bunching machines

With decades of experience in the wire and cable machinery, SAMP provides a complete range of bunching machines for stranding copper, aluminum, and their alloys, as well as for laying up insulated conductors. These machines are designed to meet the demands of the cable industry, ensuring high quality and exceptional performance.

Bunching machines for bare and tinned copper wire are engineered to produce concentric strands,19-wire unilay and 37-wire cords, as well as double-twist strands for insulated flexible or rigid conductors.

Key advantages

• Compact design: optimizes floor space in production.
• Low energy consumption: thanks to high-performance motors and bows.
• Flyer and dynamic motorized pay-offs with accurate wire-tension control
• Large diameter ceramic rotor pulleys: ensures optimal bunching quality
• Quick cable connection of bunching machine to control cabinet
• Limited number of brush collectors: reduces maintenance requirements
• Available SAMP tube-type closed bows: enhances operational efficiency
• Line direction flexibility (L → R and R → L): allows seamless integration with existing production lines

Technical specifications

• Cross section: 0.035 mm² to 240 mm²
• Maximum strand diameter: 2.6 mm to 30 mm
• Linear speed: Up to 300 m/min
• Twists per minute: 1,300 to 7,000 tpm
• Reel dimensions: 250 mm to 1,600 mm flange
• Conductor classes: 2, 5, and 6

Model features:

BM 560/630/800 double -twist bunching machines:

• Compact design with a single bow
• Constant lay length
• Pneumatic guiding tips
• Motorized wire traverse adjustment
• Integrated load cell
• Plug-and-play installation
• Low maintenance requirements

BM 1250 double -twist bunching machine:

• Suitable for a wide production range, including bare copper, aluminum, and insulated conductors.
• Large diameter pulleys for high-quality production.
• Minimum cross section of 1 mm².
• Constant tension control using a dancer.
• Wireless transmission of internal data and signals.
• Line direction flexibility (L → R and R → L).

For more information regarding SAMP’s bunching machines, we invite you to contact the company through the references on the side.
