I.LE.S. presents new automatic lines for heat treatment

I.LE.S. Industrial Furnaces in Pianengo (CR), ITALY – introduces a new range of

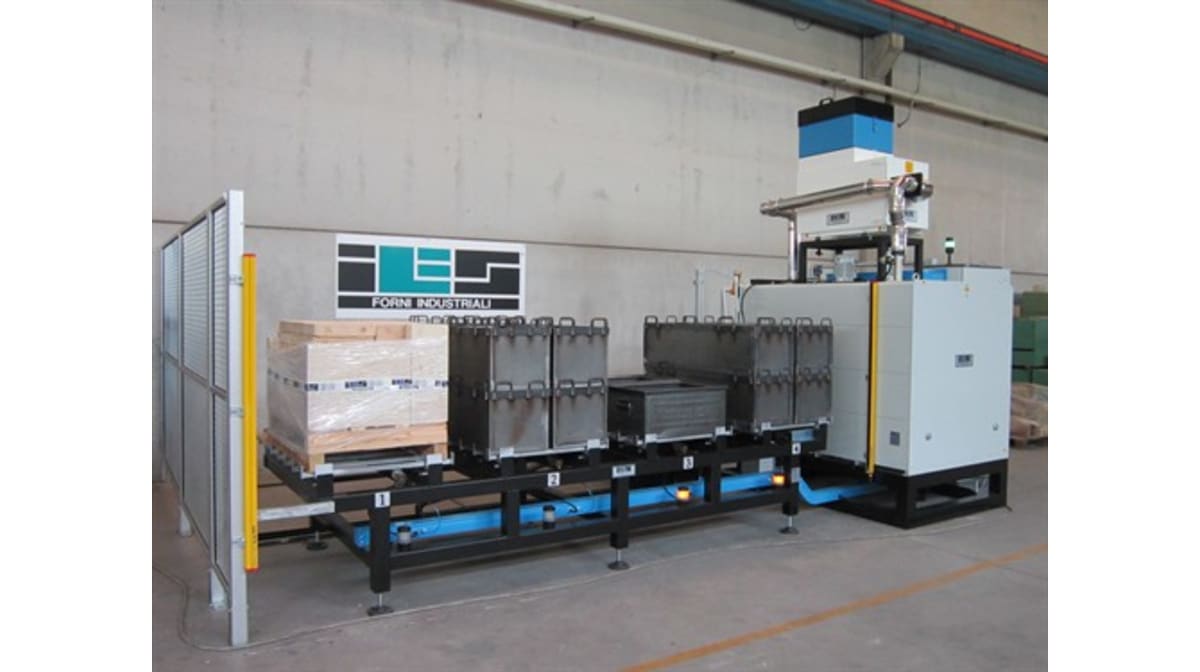

  UNATTENDED AUTOMATIC LINES
  for stabilization, tempering, structural hardening, ageing, pre-heating, stress-relieving heat treatments.

The lines are so composed:
- Horizontal chamber electric furnace, with forced air circulation and 700 °C maximum working temperature, with high thermal efficiency obtained by: insulating with the more advanced ecological ceramic fibres, assembled in several layers with differentiated density, without thermal bridges; heating with mass less wire elements, placed directly into the air circuit; using a patented system of vitrification of the surfaces which are in contact with the air; assembling specially shaped baffle and fan for the air circulation. All these elements allow to obtain, spatially in the treatment chamber, a temperature uniformity according to AMS 2750 D and CQI9 norms.
- Storage system with two, four, six or eight positions

Main characteristics:
- Useful load for each position of the storage system from 500 to 3000 kgs
- Specific software for managing the line with no operator
- Saving up to 60 different thermal cycles
- Supervisor with advanced diagnostic, for monitoring of the production and of the anomalies
- SMS Telecommunication System, to send diagnostic messages to different users, according to the occurred event
- Paperless Recorder for product certification, arranged to be linked to the company’s net
- Air cleaner for smokes and smells


More Info:
I.LE.S. Srl Industrial Furnaces
Tel 0039 0373 74397 - Fax 0039 0373 750 110
e-mail: [email protected] - web: www.iles.it
