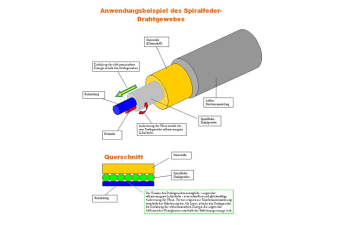

Spiral spring mesh for thermal insulation and steam tracing piping
The spiral spring mesh finds application in the industrial thermal insulation sector and particularly for steam tracing piping.
This type of mesh can be produced both with galvanised wire (drawn from wire-rode C6) and stainless steel AISI 304:
| MESH | WIRE DIAMETER | MATERIAL |
| 10/12 | wire Ø 0,90 mm. | Galvanised redrawn wire – Wire rod C6 Stainless steel AISI 304 |
| 10/12 | wire Ø 1,00 mm. | Galvanised redrawn wire – Wire rod C6 Stainless steel AISI 304 |
ROLL DIMENSIONS
| Standard dimension | 30 m2 = 2 mt. x 15 mt. |
| Standard dimension | 15 m2 = 1 mt. x 15 mt. |
| Max height | 2 m. |
| Min height | 1 m. |
| Lenght | 15 m. |
As far as the wire mesh for thermal insulation is concerned, the following documents can be provided:
Technical data sheet
Certificate of compliance
