Ladder mesh machines

n

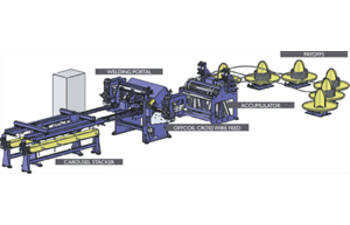

KEY BENEFITS OF THE MODEL BMT / BMW BRICK MESH MACHINE (MODEL DEPENDANT):

- Linewires and crosswires offcoil
- Coil feeder unit allows for high speed machine operation with minimal amount of back drag from the line wires
- Dual plane linewire and crosswire straightening
- Infinitely adjustable linewire spacing
- Simultaneous production of two strips of mesh of different widths
- Continuous production of strips during cutting cycle
- Storage of up to 16 different mesh programs
- Optional coiler for coiled meshes
- Carousel stacking system for flat meshes
- Option of T-weld or Lap weld
- Fast setup
- Capable of making "Zig Zag" or single plane truss mesh

TECHNICAL SPECIFICATIONS

Size of linewires:
  Max. 6mm
  Min. 1.6mm
Number of crosswires: 2 (one from either side)
Size of crosswires:
  Max. 6mm
  Min. 1.6mm
Operating speed: 250 crosswires per minute (125 per lane)
