Profiling, straightening and cutting machines for steel bars

n

The IPC line is a fully integrated line for production of cold rolled, ribbed, straight lengths of high tensile steel bar for reinforcing purposes or for line/cross wires for welding into reinforcing mesh.

The wire is fed from a payoff system. The payoff type is dependant on feed speeds required and coil type. Refer to the pay off selections.
The machine has roller reducing units to provide the required reduction in cross sectional area and to introduce the profiling onto the wire. The final profiling rollers are driven by AC motors with frequency controlled drives resulting in reduced maintenance costs.
The wire is straightened in a conventional straightening arbor and is cut to length in a rotating shear assembly. Length is determined from an electronic length input control. Wires are discharged into a receiving tray with a pneumatic end alignment system.
Extra features include bundle batching station.

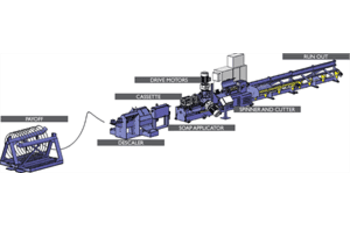

THE IPC LINE CONSISTS OF THE FOLLOWING COMPONENTS:

- Bundle Batching Station
- Payoff System
- Inline mechanical descaler
- Lubricant applicator
- Rolling section
- Straightening section
- Flying shear
- Straight length accumulator
- Bundle batching station

TECHNICAL SPECIFICATIONS

Max. inlet wire diameter    17mm
Max. finished section    16mm equivalent
Min. finished section    4mm
Output wire    Profiled and smooth
Max. rolling speed    400m/minute
Max. cut length    13,000mm
