Wire rolling lines

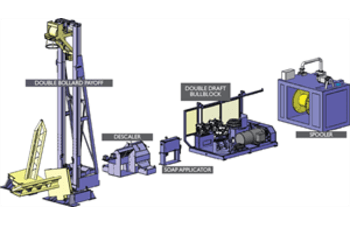

The rolling line consists of the following:

Model DBP5000 double bollard payoff
Model MDS14 mechanical descaler
Model SAD14 soap applicator
Model CRD14 cassette roller die units
Model DBB13 double draft bullblock
Model SP1250 spooler

KEY FEATURES OF ROLLING LINES:

- Driven by AC variable speed drive system.
- Constant torque drive system for constant drawing force.
- Three speed gearbox.
- Simple mechanical gear change lever.
- Wire break detector incorporated in main block cover.
- Emergency stop sequence for rapid stopping of the system.
- Integral lubrication system with cooler.
- Safety guards and switches to minimize risk to personnel.
- Synchronised variable speed AC motor driven layering pulley.
- Adjustable spool width.
- Adjustable layering speed.
- Control station for the whole line.
- Length control system.

TECHNICAL SPECIFICATIONS

Number of drafts: 2
Block diameters: 700mm 525mm
Max. inlet wire size: 14mm
Drawing speeds:
   High 0 - 12.5 m/sec
   Med 0 - 9 m/sec
   Low 0 - 3.8 m/sec
Motor power: 200 kW
Water cooling
Cassette roller discs
Max pulling force:
  High 1400 kg
  Med 2300 kg
  Low t4000 kg
Drive controller AC with variable frequency drive
