Horizontal enamelling machine for round wire – double line
Sicme Italia Impianti, specializing in the production of enamelling plants for copper and aluminium wire, offers horizontal enamelling machines type CNN 2: double lines for round wire.
Structures available: 1 oven/2 lines
Available models:
| Machine type | IEC [mm] – Cu – | |
| CNN 50 | 0.05 | 0.09 |
| CNN 80 | 0.08 | 0.18 |
| CNN 160 | 0.16 | 0.36 |
| CNN 200 | 0.2 | 0.5 |
| CNN 300 | 0.3 | 0.8 |
| CNN 500 | 0.5 | 1.2 |
| American wire gauge (AWG) | |
| 44 | 39 |
| 40 | 33 |
| 34 | 27 |
| 32 | 24 |
| 28 1/2 | 20 |
| 24 | 16 1/2 |
The company produces all plants parts in house, and tests the finished machines. Only after the testing the machines are delivered.

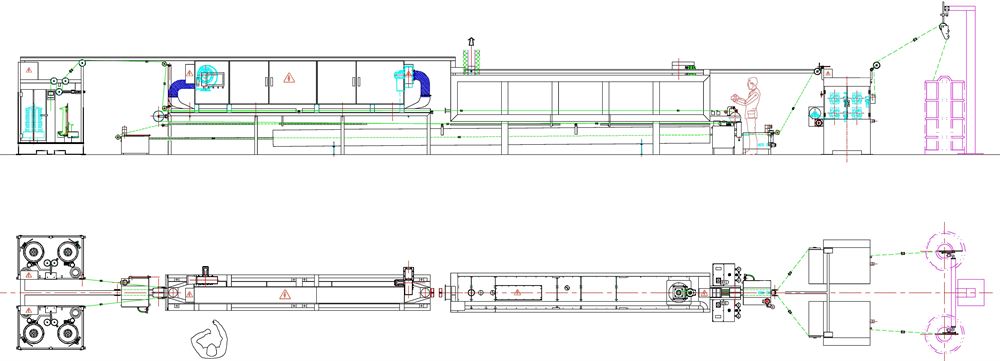

To see the layout of the machine, click here.
